- Off grid open source communication network -

Meshtastic Netherlands Telegram group (link)

Base station (UTLR):

Heltec Wireless stick lite V3, no display (ESP32 - 863 - 928 MHz)

  • LoRa Antenna: ALFA Network model AOA-868-5ACM
  • 20cm IPX to N-type cable for LoRa
  • Power: Samsung phone charger



Mobile station (JRN1):

RAK4631 WisBlock Meshtastic Starter Kit EU868 (Nordic nRF52840 transceiver)

  • RAK1901 Temperature and Humidity Sensor Sensirion SHT3 module
  • RAK1902 Barometric Pressure Sensor STMicroelectronics LPS22HB
  • RAK13800 Ethernet Module WIZnet W5100S-L (not used)
  • 10cm IPX to SMA cable
  • Heltec antenna
  • Power: 4000 mAh USB powerbank

Mobile station (JRN2):

Heltec HTIT-Tracker v1.1 (ESP32 - 863 - 928 MHz)

  • LoRa Antenna: TX868-JKD-20 (pretty good after modification)
  • 3D printed magnet-mount
  • 10cm IPX to SMA cable
  • Power: 20.000mAh USB powerbank

Mobile station (JRN3):

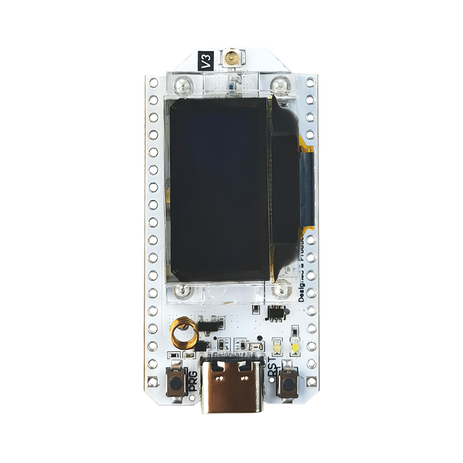

Heltec V3 (ESP32 - 863 - 928 MHz)

  • 10cm IPX to SMA cable
  • Heltec antenna
  • Power: 4000 mAh USB powerbank

Office station - funded and managed by PA2RG & PA1JRN - (RTQ):

Heltec V3 (ESP32 - 863 - 928 MHz)

  • LoRa Antenna: ALFA Network model AOA-868-5ACM
  • 20cm IPX to N-type cable for LoRa
  • Power: Samsung phone charger

GP-Antenna:

BiQuad antenna:
